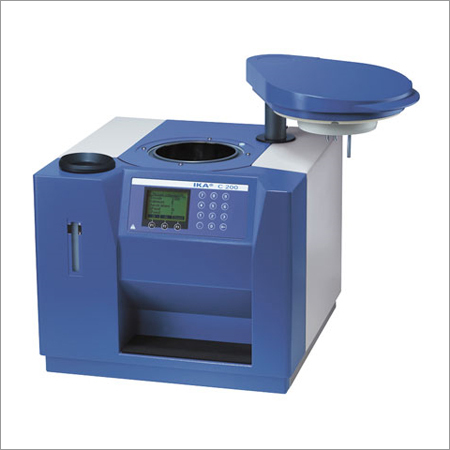

C 200 Calorimeter System

C 200 Calorimeter System
C 200 Calorimeter System
Product Code : C 200
Product Description

We have gained appreciation in the field of manufacturing and supplying fully advanced stock of C 200 Calorimeter System. These systems are useful for measuring, decomposition and oxygen filling tasks and also help in determining gross calorific values of solid & liquid samples. Offered range is cautiously integrated with fine quality components that make it highly reliable, durable and rugged in terms of construction. In addition, the manufactured C 200 Calorimeter System collection is then tested by our quality controllers to ensure a highly effective range is delivered.

Features:



  • Easy to maintain
  • Compact in size
  • Fully automatic operation
  • Rapid and accurate results

Further Details:



We are distinguished as one of the leading manufacturers, exporters and importers of C 200 Calorimeter System. Made of high quality raw material like aluminum die castings, bearings, rubbers and glass wares; these products do not falter at the time of operation. Tested on certain parameters of quality, these products have longer service life, low maintenance and error free performance. Keeping in mind the diverse needs and demands of the clients, we can modify the design and dimensions of these products. C 200 Calorimeter System is available with us at very affordable rates.

Our C 200-System consists of the following components:

  • Measuring cell C 200
  • Decomposition vessel C 5010
  • Oxygen filling station C 248
  • Consumables for calibrations and installation

Space-saving and low cost combustion calorimeter for determing gross calorific values of liquid and solid samples validation according to DIN 51900,ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711.

Suitable for teaching and training, as well (f.e tecnical- schools, universities) and for industriell laboratories with less analyses, manual handling for water and oxygen filling.
Clear and easily explained display which is simply to use.

Four different working methods : isoperibolic, dynamic, manual, time controlled makes possible an ideal adjustment of different operating tasks.

With an external power pack, "world tension useable" from 100 - 240 V AC, 50/60 Hz. The operating voltage of the calorimeter is 24 V DC low- voltage.

Manual ( teaching mode): ignition and end of the measurement will be done by the operator himself; the temperature increase will be indicated at the display each minute. At the other three modes ignition and calculation of the gross calorific value will be done automatically.

The gross calorific value will be shown on the display. Acid corrections and calculations of the net calorific value have to be done manually.

  • Isoperibolic : approx: 17 min.
  • Dynamic : approx. 8 min
  • Manual : approx. 17 min (depend on the operator)
  • Time controlled : 14 min

The decomposition vessel can be equiped in to use an combustible crucibles C 14 (accessory C 5010.4 attachment is neessary)

User-friendly software C 5040 Calwin for controlling the calorimeter and administration of measuring data (asseccory). Transfer of the datas to Excel or Word are possible up to eight IKA measuring cells can be controlled by a single PC, using a multiserial plug in card PCI 8.2 (accessory)

Technical Specifications

Measuring range max. 40000 J
Measuring mode dynamic 25oC Yes
Measuring mode isoperibol 25oC Yes
Measuring time dynamic approx. 8 min
Measuring time isoperibol approx. 17 min
Reproducibility dynamic (1g benzoic acid NBS39i) 0.1 %RSD
Reproducibility isoperibol (1g benzoic acid NBS39i) 0.1 %RSD
Working temperature max. 25 oC
Temperature measurement resolution 0.0001 K
Interface printer Centronix
Interface PC RS232
Oxygen filling No
Degasification No
Decomposition detection No
Decomposition vessel C 5010 Yes
Dimensions (W x H x D) 400 x 400 x 400 mm
Weight 21 kg
Permissible ambient temperature 20 - 25 oC
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface Yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 120 W
