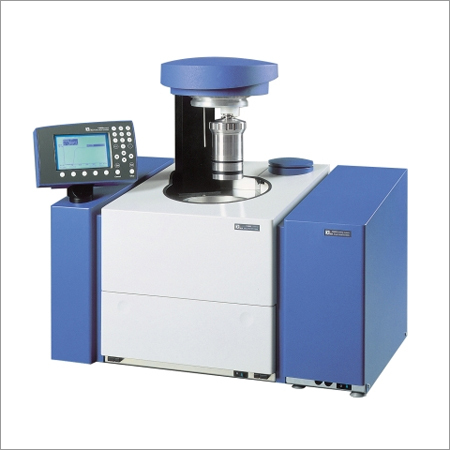

C 5000 Control Package 1-10 Calorimeter

C 5000 Control Package 1-10 Calorimeter
C 5000 Control Package 1-10 Calorimeter
Product Code : 16
Product Description

Being a quality driven firm, we firmly believe in manufacturing and exporting the quality assured range of C 5000 Control Package 1-10 Calorimeter. Offered calorimeters are designed under the strict supervision of our quality auditors and are appreciated for their measuring techniques, corrosion resistance and robust construction. These calorimeters are widely used to determine the gross calorific values of present solid and liquid samples. For the manufacturing, we always source high grade metals from the recognized vendors of the market. The range of C 5000 Control Package 1-10 Calorimeter is available at competitive market prices.

Features:

  • Versatile in functions
  • Simple to handle
  • Convenient to operate
  • Automatic ignition

Further Details:

  • Automatic water handling system includes tempering, filling and emptying of calorimeter inner vessel
  • Automatic oxygen filling and degassing of the decomposition vessel
  • Automatic decomposition vessel identification
  • Validation according to DIN 51900,ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711
  • Interface connections for each of the following: scale, printer, monitor and sample rack C 5020
  • User-friendly software C 5040 CalWin for controlling the calorimeter and administration of measuring data (accessory)
  • LIMS integration is possible
  • Special halogen resistant vessel C 5012 for quantitative decomposition of halogens and sulfur (accessory)
  • The decomposition vessel can be changed over to use combustible crucibles C 14 (accessory C 5010.4 is needed)
  • Standard consumables for calibrations and initial operation included with delivery
Technical Specifications

Measuring range max. 40000 J
Measuring mode adiabatic 22oC Yes
Measuring mode dynamic 22oC Yes
Measuring mode isoperibol 22oC Yes
Measuring mode adiabatic 25oC Yes
Measuring mode dynamic 25oC Yes
Measuring mode isoperibol 25oC Yes
Measuring mode dynamic 30oC No
Measuring mode isoperibol 30oC No
Measuring mode double dry (ISO 1928) No
Measuring time adiabatic approx. 15 min
Measuring time dynamic approx. 10 min
Measuring time isoperibol approx. 22 min
Reproducibility adiabatic (1g benzoic acid NBS39i) 0.05 %RSD
Reproducibility dynamic (1g benzoic acid NBS39i) 0.1 %RSD
Reproducibility isoperibol (1g benzoic acid NBS39i) 0.05 %RSD
Working temperature max. 25 oC
Temperature measurement resolution 0.0001 K
Cooling medium Dist. water
Type of cooling Internal
Oxygen operating pressure max. 40 bar
Interface scale RS232
Interface printer Centronix
Interface PC RS232
Interface test rack yes
Interface ext. monitor No
Interface ext. keyboard No
Oxygen filling Yes
Degasification Yes
Decomposition detection Yes
Decomposition vessel C 5010 Yes
Analysis according to DIN 51900 Yes
Analysis according to ASTM D240 Yes
Analysis according to ASTM D4809 Yes
Analysis according to ASTM D1989 Yes
Analysis according to ASTM D5468 Yes
Analysis according to ASTM D5865 Yes
Analysis according to ASTM E711 Yes
Dimensions (W x H x D) 740 x 400 x 380 mm
Weight 58 kg
Permissible ambient temperature 20 - 25 oC
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface Yes
Voltage 230 V
Frequency 50/60 Hz
Power input 1300 W
