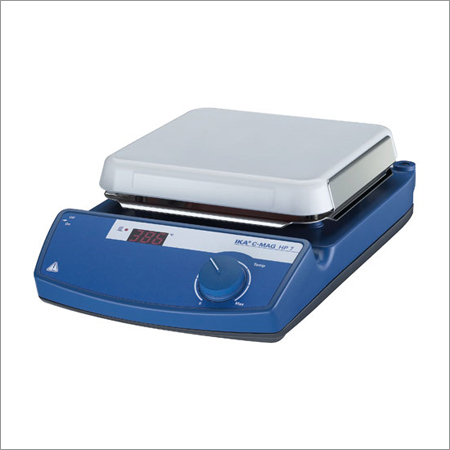

C-MAG HP 7 IKATHERM

Product Code : 06

Product Specification

C-MAG HP 7 IKATHERM

New hotplate made of ceramic glass which offers excellent chemical resistance.

Fixed safety circuit of 550 ^oC
Hot Top indicator >> hot surface warning to prevent burns!!
Exact temperature setting via digital display (LED)
Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids

Technical Specifications

Number of heating points	1
Heat output	1000 W
Heating temperature range	50 - 500 ^oC
Heat control	LED
Connection for ext. temperature sensor	ETS-D 4 fuzzy
Control accuracy with sensor	3 +K
Temperature constancy in medium	3 +K
Heating rate (1 l H2O in H15)	5 K/min
Set-up plate material	ceramic
Set-up plate dimensions	180 x 180 mm
Dimensions (W x H x D)	220 x 105 x 330 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 ^oC
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 V
Frequency	50/60 Hz
Power input	1005 W
