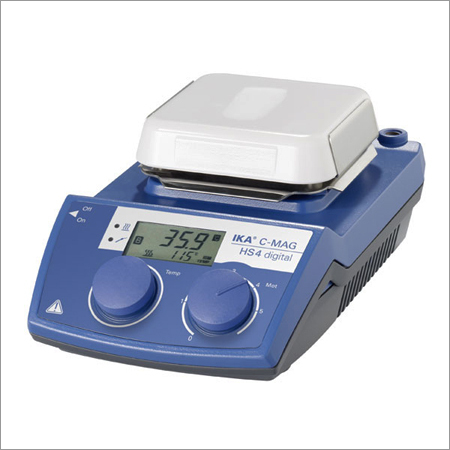

C Mag Hs 4 Digital Ikamag

C Mag Hs 4 Digital Ikamag
C Mag Hs 4 Digital Ikamag
Product Code : 26
Product Description

Owing to the state-of-the-art facility and a dedicated workforce, we are able to provide our clients with C Mag Hs 4 Digital Ikamag. These products are equipped with elevated control panel for protection against leaking liquids, hot top indicator, digital error code display and exact temperature setting via digital display (led). Longer functional life, low maintenance, exceptional chemical resistance and optimum performance are some of the key features of these products. Customized as per the specifications given by the clients, C Mag Hs 4 Digital Ikamag is available with us at industry leading rates.

Technical Specifications

Number of stirring positions


Stirring quantity max. per stirring position (H2O)

5 l

Motor rating output

1.5 W

Direction of rotation


Speed control

scale 0 - 6

Speed range

100 - 1500 rpm

Stirring bar length max.

30 mm

Heat output

250 W

Heating temperature range

50 - 500 °C

Heat control


Heating rate heating plate

2.5 K/min

Connection for ext. temperature sensor


Fixed safety circuit

550 °C

Set-up plate material


Set-up plate dimensions

100 x 100 mm

Dimensions (W x H x D)

150 x 105 x 260 mm


3 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21


230 / 120 / 100 V


50/60 Hz

Power input

270 W
