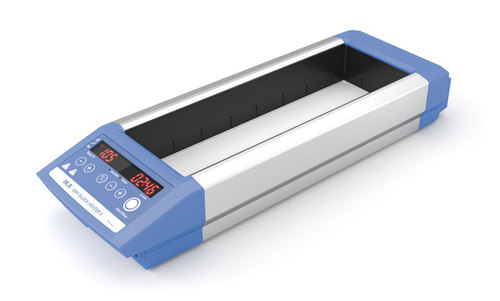

Dry Block Heater 4

Dry Block Heater 4
Dry Block Heater 4
Product Code : 4025400
Product Description

Digital block heater for four aluminum blocks provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.

  • Stepless adjustable temperature up to 120 °C
  • Timer: Countdown, adjustable from 1 min to 99h 59 min
  • Counter: Display of heating time
  • Highly versatile with a large number of blocks
  • Error code display
  • Fixed safety circuit
  • Acoustic signal at end of test

Technical Specifications

Number of blocks


Heat output

412 W

Heating temperature range

room temp. +5° - 120 °C

Temperature display


Adjustment and display resolution

1 K

Connection for ext. temperature sensor

CT (DIN12878)

PT 1000 variation;DIN EN 60751 Kl. A

≤ ± (0,15 +0,002xITI) K

Temperature stability within the blocks at 37°C *

0.2 ±°C

Temperature stability within the blocks at 60°C *

0.4 ±°C

Temperature Uniformity @ 37°C *

0.3 K

Temperature Uniformity @ 60°C *

0.6 K

Heatingrate / Heat up time with external sensor *

4 K/min

Set-up plate material

Aluminium alloy

Set-up plate dimensions

96 x 304 mm

Fixed safety circuit

150 °C



Time setting range

1 - 5999 min

* Measured in IKA DBH Testingblock

Refer Manual for more details

Dimensions (W x H x D)

151 x 73 x 456 mm


2 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21

RS 232 interface


USB interface



220 - 240 / 115 / 100 V


50/60 Hz

Power input

412 W
