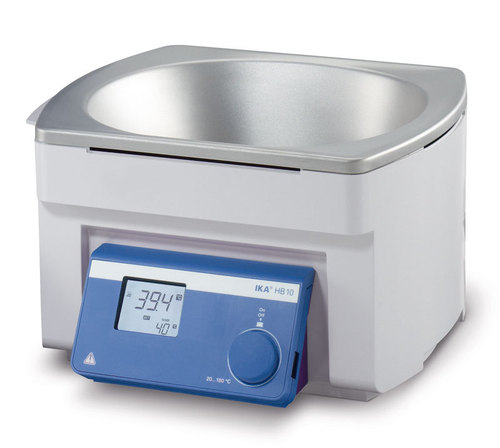

HB 10 Heating Baths

HB 10 Heating Baths
HB 10 Heating Baths
Product Code : 4068000
Product Description

Universal safety heating bath for water and oil applications. With integrated carrying handles and safety temperature circuit. The HB 10 heating bath also comes with a built in dry- run control. It stops heating the bath if no medium is present. Laterally arranged carrying handles allow for safe handling without the risk of burns. Additionally, the newly added lock function prevents accidental change of bath settings. HB 10 has an accuracy of +/-1 Kelvin. The optimized 3 liter bath shape is adapted to IKA rotary evaporator glassware. It therefore guarantees the fastest heat-up times. The heating bath HB 10 is designed with high-quality, recyclable materials and therefore contributes to resource-preserving production. Protection shield and protective cover can be added as accessories.

  • Universal use for both water and oil
  • Ergonomically designed handles
  • Safety temperature cut off
  • Integrated dry-run control
  • Lock function prevents accidental change of set conditions
  • Micro-controller temperature control
  • Accuracy +/-1 Kelvin
  • Heater power 1300 Watt
  • Optimized bath volume guarantees fast heat-up
  • Designed to work with IKA rotary evaporators


Technical Specifications

Heat output

1300 W

Heating temperature range

Room temp. - 180 °C

Heat control

LCD

Set temperature resolution

1 ±K

Controller oscillation (3 l water / 90 °C)

1 ±K

Controller oscillation (3l Silicone oil / 50mPas / 150°C)

2 ±K

Filling volume max.

3 l

Filling point min.

50 mm

Material in contact with medium

stainless steel 1.4404

Fixed safety circuit

180 °C

Adjustable safety circuit min.

50 °C

Adjustable safety circuit max.

190 °C

Safety class DIN 12877

II

Outer height

185 mm

Inner height

134 mm

Dimensions (W x H x D)

295 x 190 x 265 mm

Weight

3 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21

RS 232 interface

no

USB interface

no

Analog output

no

Voltage

220 - 240 / 100 - 120 / 100 V

Frequency

50/60 Hz

Power input

1350 W
