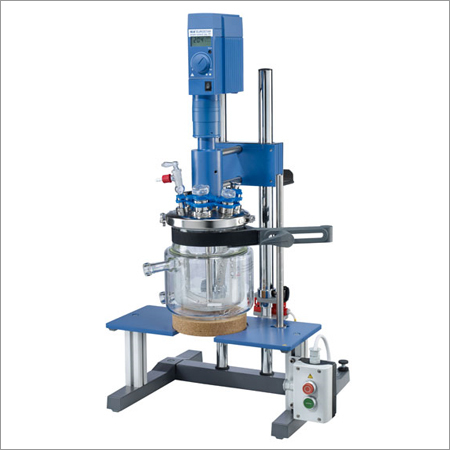

LR-2.ST Package 2 Laboratory Reactor

Product Code : 13

Product Specification

LR-2.ST Package 2 Laboratory Reactor

Modular design laboratory reactor for optimization and simulation of various chemical reactions as well as for mixing and homogenizing processes in a laboratory scale.

LR-2.ST laboratory system consisting of:

Stand system
Laboratory stirring unit EUROSTAR power control-visc P7 with high torque
Anchor stirrer LR 2000.11 with flow borings
Safety shutdown
Reactor cover

In the free connections of the reactor cover a dispersing unit (ULTRA-TURRAXÃ‚Â®), temperature sensors, flow breakers and other equipment can be installed.

Suitable for vacuum operation. Seals in contact with the product are made of solventresp. temperature-resistant perfluoroelastomer (FFPM). Infinitely adjustable speed.

Integrated torque trend display for the measurement of viscosity changes. Through control actuated by microprocessor the set speed is held constant, even under load.

Package 2:
LR-2.ST with double walled reactor vessel LR 2000.1

Technical Specifications

Usable volume min.	500 ml
Usable volume max.	2000 ml
Working temperature min.	Room temp. ^oC
Working temperature max.	230 ^oC
Attainable vacuum	25 mbar
Viscosity max.	150000 mPas
Speed range	8 - 290 rpm
Telescope stand stroke	390 mm
Material in contact with medium	Borosilicate glass, FFPM, PTFE, steel 1.4571
Reactor vessel openings (units/standard)	3/NS 29/32 2/NS 14/23"
Dimensions (W x H x D)	460 x 1240 x 430 mm
Weight	25 kg
Permissible ambient temperature	5 - 40 ^oC
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 42
RS 232 interface	Yes
Analog output	Yes
Voltage	230 V
Frequency	50/60 Hz
Power input	130 W
