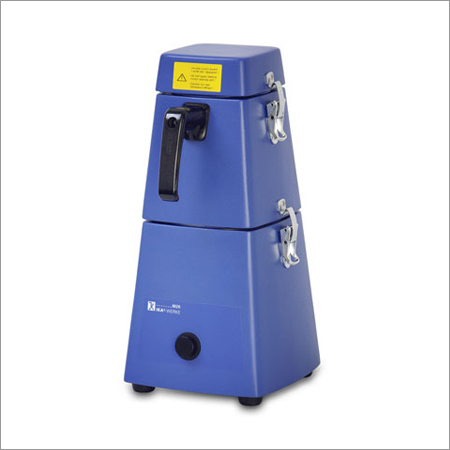

M20 Universal Mill

M20 Universal Mill
M20 Universal Mill
Product Code : M 20
Product Description

Our firm has gained a lot of appreciation in the field of manufacturing and supplying the technically assorted collection of Universal Mill. Apart from grinding, these machines are also used for drilling, contouring, cutting and diesinking. Offered collection is precision engineered using high grade components that confirm with all the set international quality standards. Delivered within the promised time frame, our products are highly admired due to their optimum performance, reliability and tough structure. All our valued customers avail the range of Universal Mill at market leading prices.

Features:



  •     Optimum strength
  •     Resistive against corrosion
  •     High mechanical strength
  •     Durable standards

Further Details:



To suit the variegated requirements of our valued patrons, we are manufacturing, importing and exporting high-grade Universal Mill in different specifications. We utilize finest raw material procured from reliable vendors of the market to manufacture these premium quality products. These products are easy to clean owing to the provision of removable grinding chamber. Used in laboratories and cosmetics industries, M 20 Universal Mill is widely acknowledged for smooth and safe operation. Our products are tested by our team of quality control to rule out any possibilities of defect.

Product features:

Batch mill suitable for dry grinding of hard and brittle substances.

  • Double-walled grinding chamber can be cooled with water through two hose adapters
  • Removable grinding chamber, easy to clean
  • Two grinding chambers can be alternately operated using one drive
  • M 21 blade incl. with delivery
Technical Specifications

Process type Batch
Operating principle Cutting/Impact
Motor rating input 450 W
Motor rating output 225 W
Speed max. 20000 rpm
Circumferential speed max. 72 m/s
Usable volume max. 250 ml
Feed hardness max. 5 Mohs
Feed grain size max. 7 mm
Material beater/cutter Stainless steel 1.4034
Material milling chamber Stainless steel 1.4301
Power-on time ON 7 min
Power-om time OFF 10 min
Milling chamber, can be cooled with water Yes
Mill feed can be cooled in milling chamber with dry ice Yes
Mill feed can be cooled in milling chamber with liquid nitrogen No
Dimensions (W x H x D) 170 x 350 x 170 mm
Weight 6.6 kg
Permissible ambient temperature 5 - 40 oC
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface No
Analog output No
Voltage 230 / 115 V
Frequency 50/60 Hz
Power input 550 W
