Home » Products » Mills » MF 10.2 Impact grinding head mill

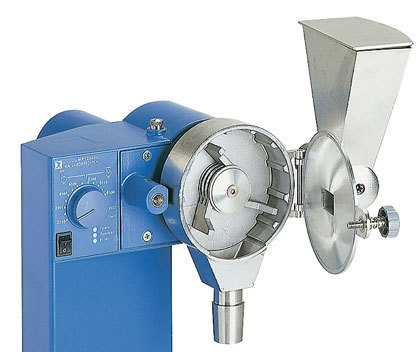

MF 10.2 Impact grinding head mill

MF 10.2 Impact grinding head mill
MF 10.2 Impact grinding head mill
Product Code : 2871000
Product Description

For crushing brittle, hard materials such as minerals, building materials up to Mohs hardness 6. Before being discharged, the ground material passes through a sieve. This sieve is interchangeable and available in different hole sizes (not incl. with delivery). The ground material can then be collected using an NS 29 standard ground vessel.

Technical Specifications

Process type

inline

Circumferential speed max.

34 m/s

Feed hardness max.

6 Mohs

Feed grain size max.

10 mm

Material milling chamber

stainless steel 1.4308

Milling chamber, can be cooled with water

no

Mill feed can be cooled in milling chamber with dry ice

yes

Mill feed can be cooled in milling chamber with liquid nitrogen

no

Dimensions (W x H x D)

320 x 450 x 300 mm

Weight

2.7 kg
