Home » Products » Magnetic Stirrers » RCT Basic IKAMAG Safety Control

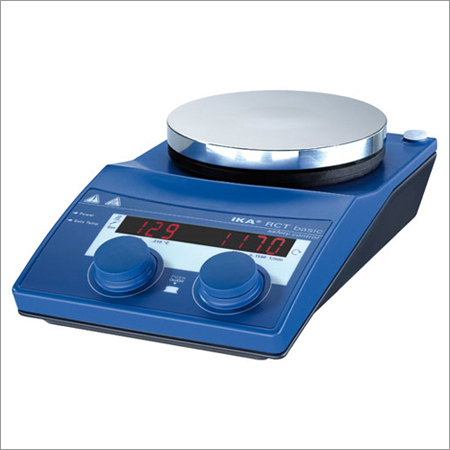

RCT Basic IKAMAG Safety Control

RCT Basic IKAMAG Safety Control
RCT Basic IKAMAG Safety Control
Product Code : 01
Product Description

With the help of innovative techniques and modern machinery; we manufacture, export and import RCT Basic IKAMAG Safety Control. Integrated temperature control, exact temperature/speed setting via digital display even when turned off, safety set temperature limit digitally displayed and digital error code display are some of the main reasons for the popularity of these products. These products are instrumental in the prevention of burns by the means of hot-top indicator. Premium quality material is used to pack RCT Basic IKAMAG Safety Control to ensure its safe transit.

The improvement of the bestseller: Now with new technology for more capacity

New: New: stronger motor for a higher range of speeds

New: Additional temperature control mode for faster heating of medium

  • Integrated temperature control

  • Incl. PT 1000 temperature sensor (PT 1000.60)

  • Exact temperature and speed setting via digital display, even when switched off

  • Set safety temperature limit displayed digitally

  • Hot Top indicator >> hot surface warning to prevent burns!

  • Digital error code display

  • With adjustable safety circuit of heating plate temperature (50 360 °C)

  • Safety magnetic stirrer with heating, suitable for unsupervised operation

  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control

  • High level of safety thanks to improved heat control technology

  • Enclosed assembly (IP 42) guarantees long service life

  • Highly polished aluminium heating plate for optimum heat transfer

  • Improved magnetic adhesion

  • Incl. protection cover H 100

Technical Specifications

Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Speed deviation of individual stirring positions 5 %
Stirring quantity max. (H2O) 20 l
Motor rating input 16 W
Motor rating output 9 W
Speed display LED
Speed range 50 - 1500 rpm
Stirring bar length max. 80 mm
Heat output 600 W
Heating rate (1 l H2O in H15) 6.5 K/min
Heating temperature range room temp. - 310 oC
Heat control LED
Heat control accuracy 1 +K
Speed control stepless
Adjustable safety circuit min. 50 oC
Adjustable safety circuit max. 360 oC
Connection for ext. temperature sensor DIN 12 878
Control accuracy with sensor 1 +K
Set-up plate material Aluminium alloy
Set-up plate dimensions Ø 135 mm
Dimensions (W x H x D) 160 x 85 x 270 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 oC
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 42
Voltage 220 - 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 650 W
