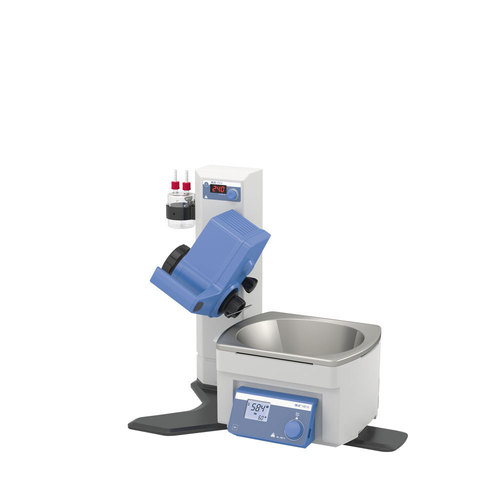

Rotary RV 8 FLEX

Rotary  RV 8 FLEX
Rotary RV 8 FLEX
Product Code : 8033400
Product Description

The IKA Rotary Evaporator range gets a new family member - the RV 8. This new distilling system completes the existing series by adding a functional basic model. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks.

  • Manual lift with integrated safety “lift-out-function“
  • Water/oil heating bath with integrated ergonomic carrying handles
  • Key-button with locking function for the heating bath temperature
  • Adjustable immersion angle
  • Digital displays for rotation speed and heating bath temperature
  • Single-hand operation; ambidextrous design
  • Speed range 5 - 300 rpm
  • Additional user safety through reduced 24 V power requirements within the unit
  • Compatible with the complete range of IKA RV 10 glassware
  • New clamp mechanism

Cooling surface

0 cm2

Motor principle

DC

Speed range

5 - 300 rpm

Reversible direction of rotation

no

Speed tolerance set rotation speed < 100rpm

1 ±rpm

Speed tolerance set rotation speed > 100rpm

1 ±%

Lift

manual

Stroke

120 mm

Heating temperature range

Room temp. - 180 °C

Heat output

1300 W

Set temperature resolution

1 ±K

Filling volume max.

3 l

Vacuum controller integrated

no

Timer

no

Dimensions (W x H x D)

510 x 490 x 345 mm

Weight

15.5 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 20

USB interface

no

RS 232 interface

no

Analog output

no

Voltage

100 - 240 V

Frequency

50/60 Hz

Power input

1400 W

DC Voltage

24 V=
