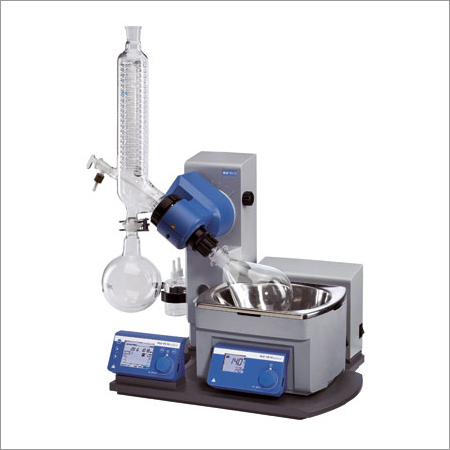

RV 10 Control V-C Rotary Evaporators

RV 10 Control V-C Rotary Evaporators
RV 10 Control V-C Rotary Evaporators
Product Code : 12RV 10 Control V-C
Product Description

For satisfying the growing needs and requirements of the industry, we are manufacturing and exporting the huge gamut of RV 10 control VC rotary evaporators. Offered evaporators are engineered by our experienced professionals who use fine quality components for the entire production process. These systems are specifically used in chemistry labs for removing the present solvents from the evaporated substance. Our customers extensively acknowledge the range for its hassle free operations, smooth finish and safe installation. Additionally, all the RV 10 control VC rotary evaporators are also available at most economical prices.

Features:

  •     Available in different specifications
  •     Longevity
  •     Sturdiness
  •     Dimensional accuracy

Further Details:

The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 control (3 litre) incl. space saving vertical glassware, coated (1 litre).
  • Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
  • Safe and simple operation through ergonomically shaped operator unit in the front area
  • Motorised lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
  • Adjustable end position recognition to protect the glass from breaking
  • Speed range from 20 to 280 rpm
  • Smooth start from 100 rpm
  • Digital speed display
  • Moves right and left in interval operation for the drying process
  • Timer function for time lapse controls
  • Water-oil heating bath with integrated carry handles with safe handling
  • Heats up quickly because of optimised bath volumes
  • Cooling surface 1,200 cm2
  • Push-off mechanism to loosen tightly fitting pistons
  • Digital water oil heating bath with integrated carry handles
  • Temperature control of the heating bath by a micro controller
  • Digital temperature display
  • Infrared interface for data transfer from the heating bath to the drive unit
  • RS 232 interface for PC remote operation with labworldsoft
  • Automatic operation with labworldsoft
  • Integrated vacuum controller with central display for automatic distilling and ramp programming
  • Integrated solvent library, extendible by the client
  • Distillation specific parameters stored for standard distillation
  • Automatic transfer of measurements and distillation type with one key press
  • Volume controlled distillation processes programmable
  • Colour graphic display for safe and comfortable device operation
  • Display of distillation curves
  • Multiple languages
  • Automatic ventilation after the end of the test
  • Cooling water switched off automatically after the end of the test
  • Integrated cooling water monitoring
  • Heating bath safety management: automatic heating bath monitoring with distillation stop in case of temperature errors
  • Heating bath switched off automatically after the end of the test
  • USB interface
  • Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)
Technical Specifications

Type of cooling Vertical
Cooling surface 1200 cm2
Motor principle DC
Speed range 20 - 280 rpm
Reversible direction of rotation Yes
Lift Motor
Stroke 140 mm
Heating temperature range Room temp. - 180 oC
Heat output 1300 W
Heat control accuracy 1 +K
Bath volume max. 3 l
Vacuum controller integrated Yes
Measurement accuracy +/- 2 mbar
Vacuum adjustment range 1050 - 1 mbar
Vacuum measurement range 1050 - 1 mbar
Timer Yes
Dimensions (W x H x D) 500 x 430 x 410 mm
Weight 21.5 kg
Permissible ambient temperature 5 - 40 oC
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface Yes
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 1400 W
