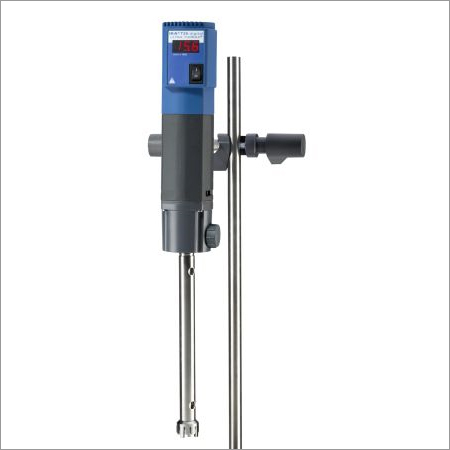

T 25 Digital ULTRA-TURRAX Disperser



T 25 Digital ULTRA-TURRAX Disperser   Next >>

Product Code : 07

Product Specification
T 25 Digital ULTRA-TURRAX Disperser

We are offering the new ULTRA-TURRAX® high-performance disperser by IKA®
  • For volumes of 1 to 2.000 ml (H2O)
  • The spectrum of applications ranges from homogenizing waste water samples
  • to the use in laboratory reactors, to dispersion tasks under vacuum / pressure
  • and sample preparation in medical diagnostics
  • Three types of shaft bearings
  • Standard version with digital display
  • Rotor-Stator configurations have thirty years of proven, guaranteed comparability of test results
Technical Specifications

Motor rating input 500 W
Motor rating output 300 W
Volume range min. (H2O) 0.001 l
Volume range max. (H2O) 2 l
Viscosity max. 5000 mPas
Speed range 3400 - 24000 rpm
Speed deviation 1 %
Speed display LED
Speed control Stepless
Noise without element 73 dB(A)
Extension arm diameter 13 mm
Extension arm length 175 mm
Process type batch
Dimensions (W x H x D) 65 x 240 x 80 mm
Weight 1.6 kg
Permissible ambient temperature 5 - 40 oC
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
Analog output no
Voltage 220 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 500 W
