Home » Products » Dispersers » T 65 digital ULTRA-TURRAX® dispersers

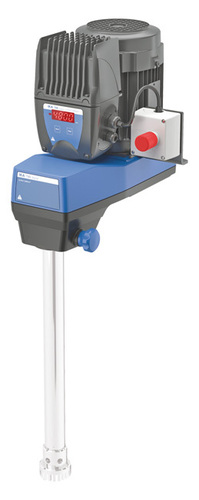

T 65 digital ULTRA-TURRAX® dispersers

T 65 digital ULTRA-TURRAX® dispersers
T 65 digital ULTRA-TURRAX® dispersers
Product Code : 4234500
Product Description

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 – 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Cables and plugs not included in the delivery.
  • Plug-in connectors facilitate exchange of dispersing elements
  • Stainless steel dispersing elements for use under vacuum and pressure
  • Error code display

Motor rating input

2600 W

Motor rating output

2200 W

Volume range min. (H2O)

2 l

Volume range max. (H2O)

50 l

Viscosity max.

5000 mPas

Speed range

1000 - 9500 rpm

Reversible direction of rotation


Speed deviation

3 %

Speed display

7 segment LED

Speed control


Noise without element

75 dB(A)

Process type


Dimensions (W x H x D)

300 x 390 x 400 mm


30 kg

Permissible ambient temperature

30 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 54


3 x 400 / 3 x 230 V


50/60 Hz

Power input

2600 W
